Data Packet's (not) secure journeys in containerland
Part I

Vainius Dangovas
IT solution architect

Purpose of this talk

• Ongoing container orchestration tool development requires understanding key concepts
• A lot of abstraction levels hide the technology details
• Understanding:
• what is really complex
• what is simple, just in large scale
• Filling the gaps that are created doing copy/paste installations and configurations

Tools and technologies

• Container technologies are trendy and fresh :)
• 4 terms/tools allow explaining most of the available network features
• Basic Linux usage knowledge required
• Basic networking concept knowledge required

IP route2 (2006)

• CLI utility suite for network management and monitoring
• Manage different network objects using consistent syntax
• Toolkit that replaced net-tools (ifconfig, vconfig, route, arp etc.)
• Usability and flexibility shown in demo setup scripts
• Lots of documentation

Linux namespaces (2002)

• Fundamental aspect of containers
1. Mount - isolate filesystem mount points
2. UTS - isolate hostname and domain name
3. IPC - isolate interprocess communication (IPC) resources
4. PID - isolate the PID number space
5. Network - isolate network interfaces
6. User - isolate UID/GID number spaces
7. Cgroup - isolate cgroup root directory
• In R&S terms - VRF or routing instance

Linux network devices

• veth (virtual Ethernet device) - local Ethernet tunnel
• similar to tap device
• allows connectivity between network namespaces
• bridge - closest to a network switch inside Linux
• tun/tap - kernel software loopback mechanism that forwards (L2/L3) packets to a userspace program
• macvlan
• ipvlan
• ipip
• gre, vxlan, geneve

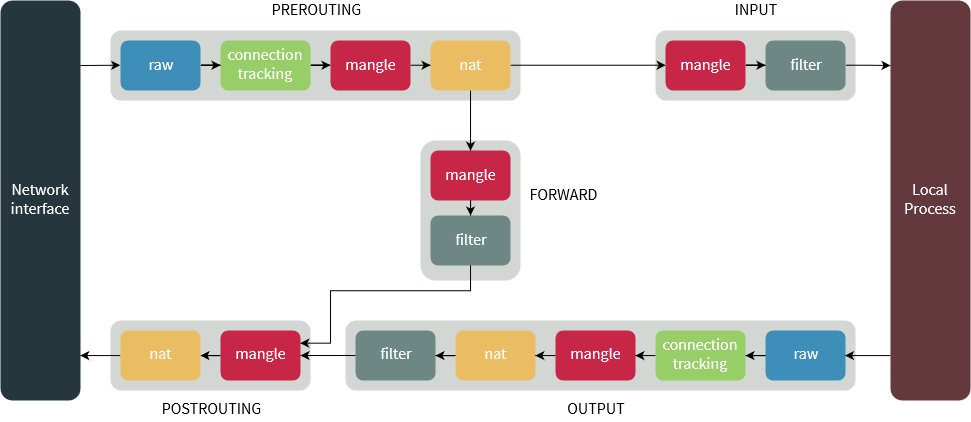

iptables (2000)

• Everyone knows it... a little
• Concepts:
• Tables
• Chains
• Targets
• Features:
• Firewalling
• SRC/DST NAT (masquerade)
• Custom chaining

IPVS - LVS (1998)

• No one knew it... until containers
• L4 in-kernel loadbalancer
• Features:
• LB methods: rr, wrr, lc, wlc, src/dst hash, ...
• Persistence
• Flexible service definition
• Direct return, IPIP, SNAT
• Actually used in high scale LB

Legend and topology

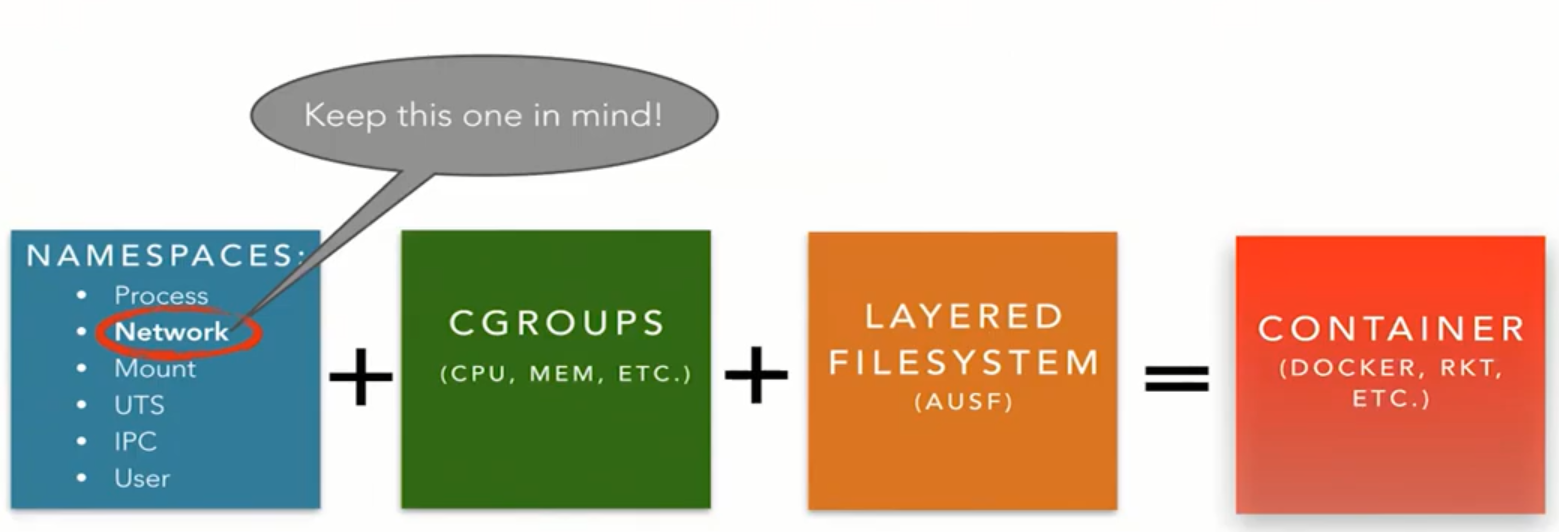

What is a container?

Container = Isolated resources + Resource limitations + Files

Network namespace (NS) in action

• Network namespace "con1" with virtual interface veth10
• No "normal" L3 gateway - route to itself via veth tunnel
• Reachability only inside a node

NS implemented

NS ingress/egress traffic

• L3 gateway: bridge interface. Route to default gateway br1 172.16.1.1/24
• Ingress/egress solutions depend on NAT or external reachability information

NS ingress/egress traffic

Increasing # of NS

• Container horizontal scale in node/multiple nodes
• Starting to feel like the real container use case
• Increasing amount of choices

Single node - multiple NS

• Network namespaces reside in a LAN - L2 connectivity available
• Iptables support firewalling bridged traffic
• Ingress/egress solutions depend on NAT or external routing knowledge
• Network structure in a node choices:
• Flat L2
• Container in a subnet
• Mix and match
• Alternative Linux network devices

Multiple node topology

Multi-node topology implemented

Other Multi-Node topologies and approaches

• Multi-Node container environment integrated with physical network:
• Orchestrated physical network fabrics
• Network reachability information adjacencies
• New software integrations on network equipment
• At least two independent software vendors
• A separate overlay network solely done by container hosting nodes:
• Simpler physical transport network
• Tunneling traffic and reachability information exchange methods
• Server solutions inventing the wheel
• Serverside hardware dataplane acceleration development and integration

Services in Multi-Node topologies

Ingress traffic to services [IPVS]

Distributed service delivery problems

• Distributed ingress - redundant, but undeterministic
• Double load balancing
• Suboptimal data path with E-W
• Multilayer SNATs to solve traffic asymmetry

What makes container environments difficult to manage?

• Inconceivable amount (for humans) of dynamic state
• Anything can be anywhere
• No/little network troubleshooting tools
• Abstracted/layered solutions

Implementations in real life solutions

Most solutions divide into two groups:

• Popular orchestrated OSS solutions: Kubernetes, Docker CE (Swarm)
• Productized solutions: Kubernetes by $Vendor, Docker EE (Swarm)

Any way leads to the same solutions, only different maintenance and support models

Implementations in real life solutions: Docker Swarm

Good for smaller scale deployments or where as much as possible should be out-of-the-box.

• Extensively uses internal overlays
• Services access distributed on all nodes
• Internal load balancing by iptables + IPVS (difficult to seek by hand)

Implementations in real life solutions: Kubernetes

Simpler from network standpoint, extensible architecture, used for extremely large deployments.

• Uses as little layers as possible
• NATless, where possible. Similar to routed multi-node option
• Various service delivery methods
• ClusterIP (internal service)
• NodePort (essentially DNAT to virtual service) - first overlay
• Load Balancer - external balancer integration
• Ingress - application load balancer instance
• Internal load balancing by kube-proxy (userspace), iptables, IPVS

What's ahead?

1. Container solutions inside-out
2. Network plugins and CNI
3. External network integrations
4. Distributed network security policies
5. Sidecar proxies - distributed application level security policies

Credits

Kristen Jacobs - Container Networking (Video, Source)

SMN colleagues

CNI and Container networking configuration (Video)

Docker Swarm networking article

Manual page, article and stackoverflow topic authors
